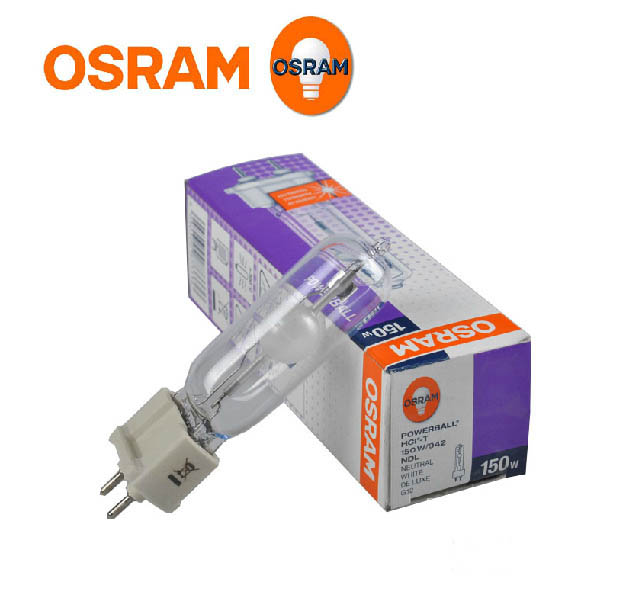

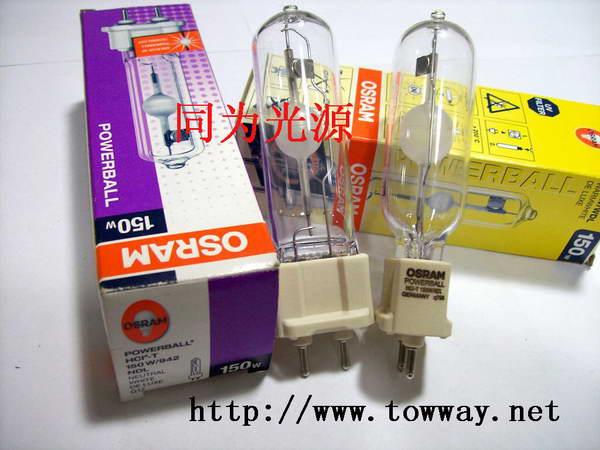

歐司朗 OSRAM HCI-T 150W/942 NDL G12 陶瓷金鹵燈

歐司朗 OSRAM HCI-T 150W/942 NDL G12 陶瓷金鹵燈產品優勢

極高效率，優良的顯色性，良好的顏色穩定性，借助紫外線濾光片，使紫外線輻射值明顯低于IEC 61167標準中的最大允許閾值

歐司朗 OSRAM HCI-T 150W/942 NDL G12 陶瓷金鹵燈應用領域

商店內飾、商店櫥窗，商場，門廳和接待區，博物館、展覽館，展覽館和貿易博覽會，工廠和車間，僅適合用于密閉燈具，室外使用時，需安裝在合適燈具中

歐司朗 OSRAM HCI-T 150W/942 NDL G12 陶瓷金鹵燈產品特點

POWERBALL陶瓷技術，光色：暖白（830 WDL）、中性白（942 WDL），平均使用壽命： 15000 小時（配用 ECG，70…400 Hz 方波電流)，平均壽命：12,000 h（工作于電感鎮流器），HCI-T 50 W 只能和 ECG 一起使用，且必須為其提供 70…400 Hz 方波電流

Electrical data

Nominal wattage	150 W
Rated wattage	147.00 W
Lamp current	1.85000 A
PFC capacitor at 50 Hz	20 μF
Ignition voltage	3.6 / 5.0 kVp

Photometrical data

Luminous flux	14700 lm
Luminous efficacy	100 lm/W
Color rendering index Ra	95
Color temperature	4200 K
Light color	942
Rated LLMF at 2,000 h	0.92
Rated LLMF at 4,000 h	0.85
Rated LLMF at 6,000 h	0.82
Rated LLMF at 8,000 h	0.78
Rated LLMF at 12,000 h	0.74
UV protection	Yes

Dimensions & weight

Diameter	25.0 mm
Length	105.0 mm
Light center length (LCL)	56.0 mm
Product weight	34.00 g

Temperatures

Maximum permitted outer bulb temperature	550 °C
Maximum permitted pinch temperature	350 °C

Lifespan

Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.98
Rated lamp survival factor at 6,000 h	0.97
Rated lamp survival factor at 8,000 h	0.96
Rated lamp survival factor at 12,000 h	0.80
Lifespan B50	15000 h
Operation mode LLMF/LSF	ECG

Additional product data

Base (standard designation)	G12
Design / version	Clear
System guarantee level	3 (2/5)
Lamp mercury content	18.6 mg

Capabilities

Dimmable	Yes
Burning position	Any
Enclosed luminaire required	Yes
Hot restart	No

Certificates & standards

Energy efficiency class	A+
Energy consumption	162 kWh/1000h
