OSRAM HCI-PAR30 35W/830, 942; 70W//830, 930, 942 陶瓷金鹵燈（進口）
更新：2015/6/24 10:18:00 點擊：
- 產品品牌 歐司朗
- 產品型號 HCI-PAR30 35W 70W/
- 產品描述
OSRAM HCI-PAR30 35W/830, 942; 70W//830, 930, 942 陶瓷金鹵燈（進口惠州市同為光源電子有限公司 是國內最具規模的品牌光源供應商之一，備有大量的現貨和具有...
產品介紹

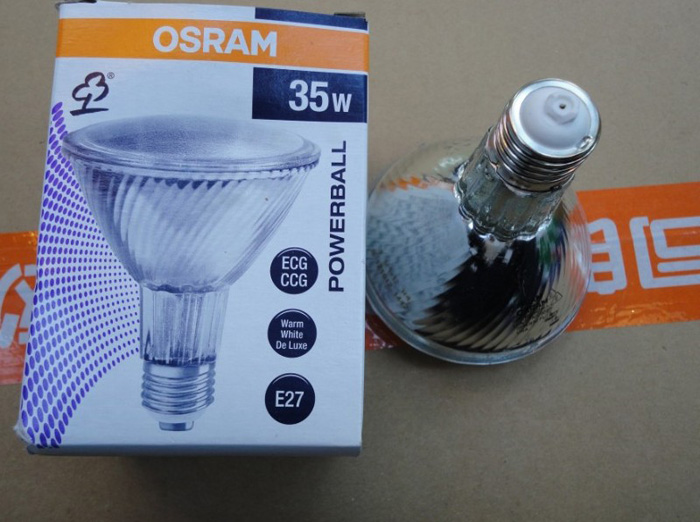

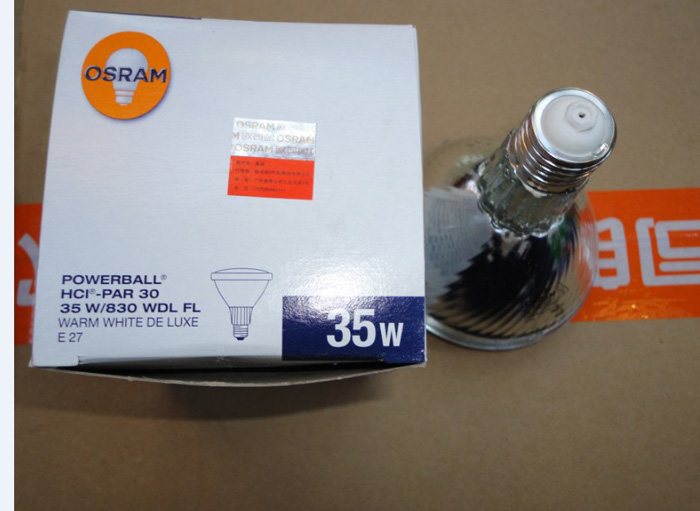

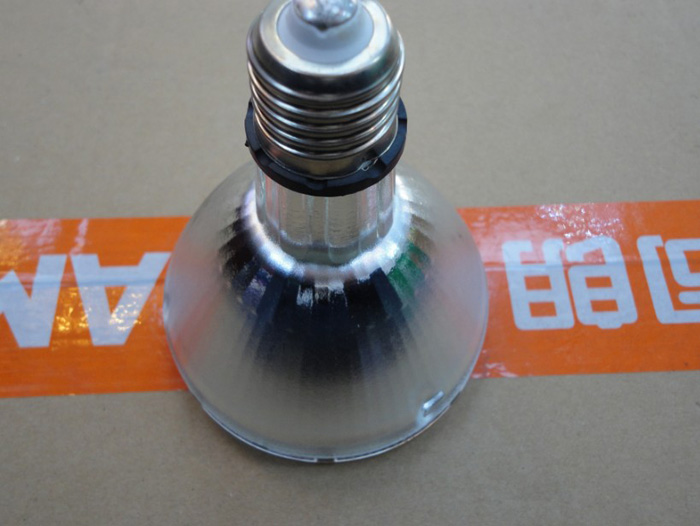

OSRAM HCI-PAR30 35 W/830 WDL 陶瓷金鹵燈（進口）
產品優勢
非常高的效率，簡單的燈安裝/更換在開放式燈具，最佳排放，優異的顯色性，很好的顏色穩定性，UV值明顯低于最大允許閾值的IEC 61167由于紫外線過濾器
應用領域
店內，商店的櫥窗，商場，博物館，展覽，工業類，公園和花園，建筑物，紀念碑，橋，適用于開放式和封閉式燈具，只有在合適的燈具室外應用
產品特點
強力球陶瓷技術，集成反射鏡，燈光顏色：暖白（830為930，WDL），中性白（942針）
Electrical data
Nominal wattage
35.0 W
Rated wattage
39.00 W
Lamp current
0.53 A
PFC capacitor at 50 Hz
6 μF
Ignition voltage
3.6 / 4.5 kVp
| Nominal wattage | 35.0 W |
|---|---|
| Rated wattage | 39.00 W |
| Lamp current | 0.53 A |
| PFC capacitor at 50 Hz | 6 μF |
| Ignition voltage | 3.6 / 4.5 kVp |
Photometrical data
Rated useful luminous flux 90°
2299 lm
Luminous intensity
45000 cd
Rated peak intensity
45000 cd
Color rendering index Ra
85
Color temperature
3000 K
Light color
830
UV protection
Yes
| Rated useful luminous flux 90° | 2299 lm |
|---|---|
| Luminous intensity | 45000 cd |
| Rated peak intensity | 45000 cd |
| Color rendering index Ra | 85 |
| Color temperature | 3000 K |
| Light color | 830 |
| UV protection | Yes |
Light technical data
Nominal beam angle
10 °
Rated beam angle (half peak value)
10.00 °
Beam angle (designation)
SP
Warm-up time (60 %)
180.00 s
Starting time
30.0 s
| Nominal beam angle | 10 ° |
|---|---|
| Rated beam angle (half peak value) | 10.00 ° |
| Beam angle (designation) | SP |
| Warm-up time (60 %) | 180.00 s |
| Starting time | 30.0 s |
Dimensions & weight
Diameter
95.5 mm
Length
125.0 mm
Product weight
220.00 g
| Diameter | 95.5 mm |
|---|---|
| Length | 125.0 mm |
| Product weight | 220.00 g |
Temperatures
Maximum permitted base edge temperature
210 °C
Maximum permitted reflector neck temp.
210 °C
Maximum permitted reflector edge temp.
160 °C
| Maximum permitted base edge temperature | 210 °C |
|---|---|
| Maximum permitted reflector neck temp. | 210 °C |
| Maximum permitted reflector edge temp. | 160 °C |
Lifespan
Lifespan B50
12000 h
Rated lamp life time
12000 h
Number of switching cycles
1090
| Lifespan B50 | 12000 h |
|---|---|
| Rated lamp life time | 12000 h |
| Number of switching cycles | 1090 |
Additional product data
Base (standard designation)
E27
System guarantee level
3 (1/5)
Lamp mercury content
4.2 mg
| Base (standard designation) | E27 |
|---|---|
| System guarantee level | 3 (1/5) |
| Lamp mercury content | 4.2 mg |
Capabilities
Dimmable
No
Burning position
Any
Enclosed luminaire required
No
| Dimmable | No |
|---|---|
| Burning position | Any |
| Enclosed luminaire required | No |
Certificates & standards
Energy efficiency class
A
Energy consumption
43 kWh/1000h
| Energy efficiency class | A |
|---|---|
| Energy consumption | 43 kWh/1000h |
