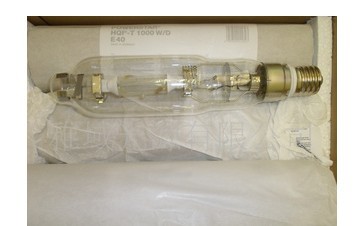

OSRAM 1000W/N 金鹵燈管E40中性光
更新：2015/6/4 10:50:59 點擊：
- 產品品牌 歐司朗OSRAM
- 產品型號 HQI-T
- 產品描述
OSRAM 1000W/N 金鹵燈管E40中性光...
產品介紹
OSRAM 1000W/N 金鹵燈管E40中性光
OSRAM 1000W/N 金鹵燈管E40中性光產品特性
高達2000 W的輸出，效率高，E40簡單燈裝卸螺釘座，壽命長，UV值明顯低于最大允許閾值的IEC 61167由于紫外線過濾器
OSRAM 1000W/N 金鹵燈管E40中性光應用領域
工廠和車間，體育廳和多功能廳，工業設施，機場，碼頭和港口設施，編組站，集裝箱轉運設施，批準用于封閉式燈具，只有在合適的燈具室外應用
OSRAM 1000W/N 金鹵燈管E40中性光產品特點
宏達石英技術，燈光顏色：中性白（N），日光（D）
Electrical data
| Nominal wattage | 1000 W |
|---|---|
| Rated wattage | 1050.00 W |
| Lamp current | 9.00000 A |
| PFC capacitor at 50 Hz | 85 μF |
| Nominal voltage | 130 V |
| Ignition voltage | 4.0 / 5.0 kVp |
| Rated lamp efficacy (standard condition) | 104 lm/W |
| Rated luminous flux | 110000 lm |
Photometrical data
| Color rendering index Ra | 64 |
|---|---|
| Color temperature | 3350 K |
| Light color | 630 |
| Rated LLMF at 2,000 h | 0.91 |
| Rated LLMF at 4,000 h | 0.86 |
| Rated LLMF at 6,000 h | 0.82 |
| Rated LLMF at 8,000 h | 0.78 |
| Rated LLMF at 12,000 h | 0.70 |
| UV protection | Yes |
Dimensions & weight
| Diameter | 76.0 mm |
|---|---|
| Length | 345.0 mm |
| Light center length (LCL) | 220.0 mm |
| Product weight | 413.50 g |
Temperatures
| Maximum permitted outer bulb temperature | 500 °C |
|---|---|
| Maximum permitted base edge temperature | 250 °C |
Lifespan
| Rated lamp survival factor at 2,000 h | 0.99 |
|---|---|
| Rated lamp survival factor at 4,000 h | 0.95 |
| Rated lamp survival factor at 6,000 h | 0.83 |
| Rated lamp survival factor at 8,000 h | 0.62 |
| Rated lamp survival factor at 12,000 h | 0.16 |
| Lifespan B50 | 9000 h |
Additional product data
| Base (standard designation) | E40 |
|---|---|
| Design / version | Clear |
| Lamp mercury content | 110.0 mg |
Capabilities
| Burning position | p30 |
|---|---|
| Enclosed luminaire required | Yes |
Certificates & standards
| Energy efficiency class | A+ |
|---|---|
| Energy consumption | 1161 kWh/1000h |
