歐司朗 OSRAM HQI-TS 70W/WDL.RX7S
更新：2015/6/24 13:35:17 點擊：
- 產品品牌 歐司朗 OSRAM
- 產品型號 HQI-TS 70W/WDL
- 產品描述
歐司朗70W雙端金鹵燈-OSRAM HQI-TS 70W/WDL.RX7S...
產品介紹

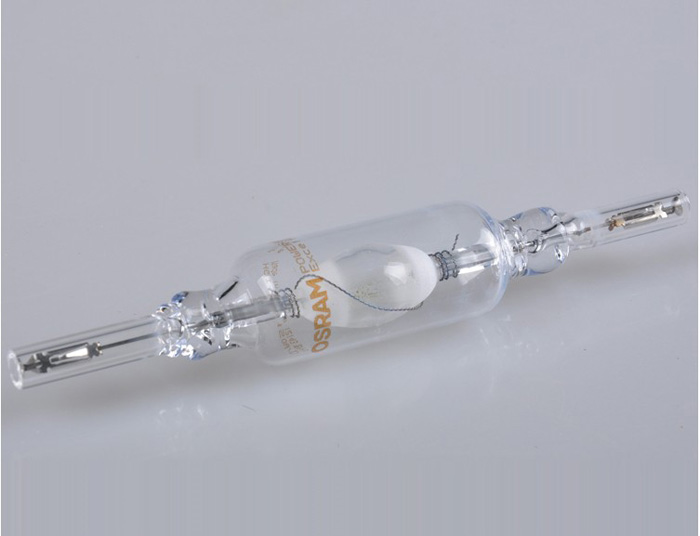

歐司朗 OSRAM HQI-TS 70W/WDL.RX7S 金鹵燈
歐司朗 OSRAM HQI-TS 70W/WDL.RX7S 金鹵燈產品的好處
效率高，光線分布均勻，優異的顯色性，壽命長，熱重燃的能力，UV值明顯低于最大允許閾值的IEC 61167由于紫外線過濾器
歐司朗 OSRAM HQI-TS 70W/WDL.RX7S 金鹵燈應用領域
店內，商店的櫥窗，商場，大廳，接待區，建筑物，紀念碑，橋，博物館，展覽，展覽廳、展銷會，步行區，廣場，公園和花園，批準用于封閉式燈具，只有在合適的燈具室外應用
歐司朗 OSRAM HQI-TS 70W/WDL.RX7S 金鹵燈產品特點
宏達石英技術，燈光顏色：暖白（WDL），中性白（NDL），日光（D），冷光（CD），平均壽命：12000小時
Electrical data
| Nominal wattage | 70.0 W |
|---|---|
| Rated wattage | 78.00 W |
| Lamp current | 0.95000 A |
| PFC capacitor at 50 Hz | 12 μF |
| Nominal voltage | 98.0 V |
| Ignition voltage | 3.6 / 5.0 kVp |
| Rated lamp efficacy (standard condition) | 76 lm/W |
| Rated luminous flux | 5925 lm |
Photometrical data
| Color rendering index Ra | 67 |
|---|---|
| Color temperature | 3300 K |
| Light color | 630 |
| Rated LLMF at 2,000 h | 0.68 |
| Rated LLMF at 4,000 h | 0.64 |
| Rated LLMF at 6,000 h | 0.56 |
| Rated LLMF at 8,000 h | 0.50 |
| Rated LLMF at 12,000 h | 0.45 |
| UV protection | Yes |
Dimensions & weight
| Diameter | 19.0 mm |
|---|---|
| Length | 117.0 mm |
| Light center length (LCL) | 57.0 mm |
| Product weight | 15.00 g |
Temperatures
| Maximum permitted outer bulb temperature | 500 °C |
|---|---|
| Maximum permitted pinch temperature | 350 °C |
Lifespan
| Rated lamp survival factor at 2,000 h | 0.95 |
|---|---|
| Rated lamp survival factor at 4,000 h | 0.90 |
| Rated lamp survival factor at 6,000 h | 0.85 |
| Rated lamp survival factor at 8,000 h | 0.80 |
| Rated lamp survival factor at 12,000 h | 0.50 |
| Lifespan B50 | 12000 h |
Additional product data
| Base (standard designation) | RX7s |
|---|---|
| Design / version | Clear |
| Lamp mercury content | 12.6 mg |
Capabilities
| Dimmable | No |
|---|---|
| Burning position | p45 |
| Enclosed luminaire required | Yes |
| Hot restart | Yes |
Certificates & standards
| Energy efficiency class | A |
|---|---|
| Energy consumption | 86 kWh/1000h |
